178° Viewing Angle Aviation Aluminum Smart Board Interactive Whiteboard for Business
Specifications:
| Touch technology |
Infrared multi touch technology |
| Touch model |
10 touch points |
| Induction object |
Finger, pen, any opaque objects |
| Size of induction |
Greater than or equal to 5 mm in diameter |
| Resolution |
32768*32768 |
| Response time |
First point 25ms consecutive points 8ms |
| Cursor speed |
≥200dots/second |
| Glass Thickness |
4mm Normal or Anti-glare tempered glass |
| Operating voltage |
DC 4.6V ~ DC 5V by USB |
| Consumption current |
<1W, current ≤ 100mA |
| Touch Activation Force |
No pressure needed |
| Service life |
>6 million times single spot touch |
| Transferring rate |
12m/s |
| Positioning accurac |
≤0.1mm |
| Droop resistant |
Yes, prevent due to long time work performance degradation |
| Certificate |
CE, ISO 9001 |
| Warranty |
3 Years |
Accessories for school laboratory equipment smart board:
Wall Mount
A pointer
Operating Instructions
4 x whiteboard Pen
Software CD
6M USB cable
Mobile stand(optional)

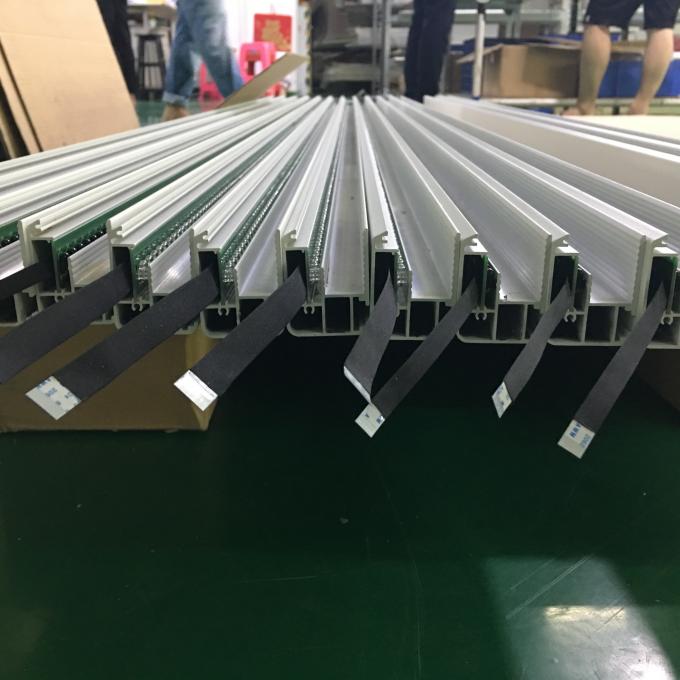

Aluminum Frame
A. Specific gravity is 1.4 kg/m. With spray technology for white color. The appearance of product is massy
and beautiful.
Infrared filter
TACTESY’s infrared filter use special anti-interference material. This material only allows infrared light to transmit
and other lights should be blocked. In this way infrared signal can be kept, increase the anti-interference ability.
Besides Poly Carbonate material is adopted to have higher tenacity. It is difficult to be broken and transparent surface
make the infrared led invisible. Which makes the product looks better.
Corner
TACTEASY whiteboard corner use the ABS+PC material, with strongest crush resistance, good to protect the
inside connect lines.
The inside iron triangle fix with aluminum frame by screws. Four levels of cohesive structure help for maintenance
and inspection, save time and manpower.
Interactive software
›√ 30 STUDENTS AS A TEAM, INTERACTION NETWORK
›√ INSTANT RECORD, ANY WHERE, ANY TIME
›√ MULTI TOUCH BRING ACTIVE LEARNING ATMOSPHERE
›√ TO PROTECT ENVIRONMENT,ON-LINE EXAMINATION
›√E-LEARNING TO BREAK TRADITIONAL TEACHING
