Ultra Thin Aluminum Frame Honeycomb Smart Board Interactive Whiteboard
Featues:
›√ 30 Students As A Team, Interaction Network
›√ Online Teaching,Real-Time Transmission
›√ Instant Record, Any Where, Any Time
›√ Multi Touch Bring Active Learning Atmosphere
›√ To Protect Environment,On-Line Examination
›√ E-Learning To Break Traditional Teaching
Specifications:
| Touch technology |
Infrared multi touch technology |
| Touch model |
10 touch points |
| Induction object |
Finger, pen, any opaque objects |
| Size of induction |
Greater than or equal to 5 mm in diameter |
| Resolution |
32768*32768 |
| Response time |
First point 25ms consecutive points 8ms |
| Cursor speed |
≥200dots/second |
| Glass Thickness |
4mm Normal or Anti-glare tempered glass |
| Operating voltage |
DC 4.6V ~ DC 5V by USB |
| Consumption current |
<1W, current ≤ 100mA |
| Touch Activation Force |
No pressure needed |
| Service life |
>6 million times single spot touch |
| Transferring rate |
12m/s |
| Positioning accurac |
≤0.1mm |
| Droop resistant |
Yes, prevent due to long time work performance degradation |
| Certificate |
CE, FCC, ROHS, ISO 9001 |
| Warranty |
3 Years |

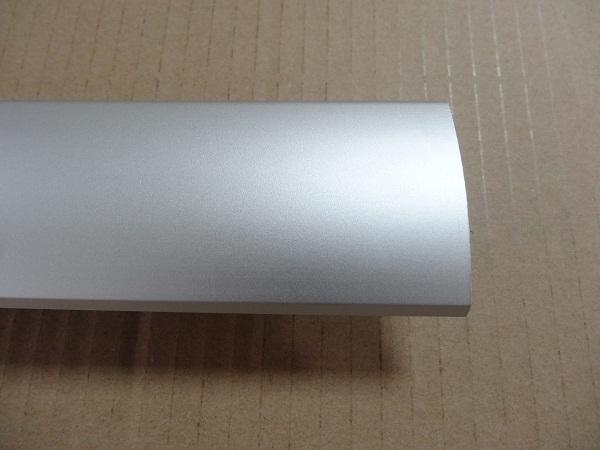

Aluminum Frame
A. Specific gravity is 1.4 kg/m. With spray technology for white color. The appearance of product is massy
and beautiful.
B. Specific gravity is 0.9 kg/m. With oxidation wire drawing technology for grey color,
not only has dumb light radiant with metallic luster, but also have fashion and technology elements.
C. Specific gravity is 0.8 kg/m. With ordinary anodize-clear technology for the ordinary silver color,
the new color of us whiteboard.
Sandwich layer
TACTEASY’s sandwich layer adopts the aerospace material of aluminum honeycomb.
As you know, honeycomb structure not only saves weight but also has high structural intensity,
good sound insulation and heat insulation effect. It is widely used in aerospace industry.
Smart Side Pen tray
On the left side of whiteboard, concise and easy.

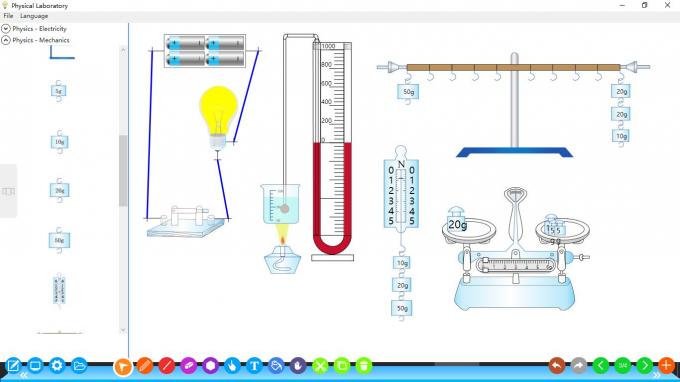

Interactive software
›The interactive software incorporates drawing tools and shapes for meetings, presentations and teaching,
so that you can draw on surface by fingers, annotate live websites and save your work for reference etc.
Support to interact between Window and Android.
