25 Shortcut Keys Smart Board Interactive Whiteboard With Physics Experiment
Typical advantages:
2 High quality PCB and electronic components, IWB can support dust-proof.
2 Stability with high precision on harsh working environment
2 No need driver on large size board. Plug in and it is touchable.
2 Low power consumption. Large size board power only need 200mah
2 Functional software. Easy to operate. Updated from time to time.
2 Quality guarantee, 3 years warranty. Easy tomaintenance.
Specifications:
| Touch technology |
Infrared multi touch technology |
| Touch model |
10 touch points |
| Induction object |
Finger, pen, any opaque objects |
| Size of induction |
Greater than or equal to 5 mm in diameter |
| Resolution |
32768*32768 |
| Response time |
First point 25ms consecutive points 8ms |
| Cursor speed |
≥200dots/second |
| Glass Thickness |
4mm Normal or Anti-glare tempered glass |
| Operating voltage |
DC 4.6V ~ DC 5V by USB |
| Consumption current |
<1W, current ≤ 100mA |
| Touch Activation Force |
No pressure needed |
| Service life |
>6 million times single spot touch |
| Transferring rate |
12m/s |
| Positioning accurac |
≤0.1mm |
| Droop resistant |
Yes, prevent due to long time work performance degradation |
| Certificate |
CE, FCC, ROHS, ISO 9001 |
| Warranty |
3 Years |
Aluminum Frame
1. Specific gravity is 1.4 kg/m. With spray technology for white color. The appearance of product is
massy and beautiful.
2. Specific gravity is 0.9 kg/m. With oxidation wire drawing technology for grey color,
not only has dumb light radiant with metallic luster, but also have fashion and technology elements.
Sandwich layer
TACTEASY’s sandwich layer adopts the aerospace material of aluminum honeycomb.
As you know, honeycomb structure not only saves weight but also has high structural intensity,
good sound insulation and heat insulation effect. It is widely used in aerospace industry.
Board Surface
There are three board surface can be choose from TACTEASY, no matter what kind of board surface you choose ,
the evenness and longevity can be guaranteed. Because the compact structure and stable of aluminum honeycomb core,
keep the surface smooth and long life. Support the water ink pen writing and washing.
A. Aluminum plate
Both sides are all aluminum plate. Front side and back side thickness are all 0.8 mm. The weight is the lightest.
B. Steel plate
Both sides are all steel plate. Front side and back side thickness are all 0.8 mm. The weight is relatively heavier.
C. Enamel board
The front side is 0.4mm enamel plate, back side is 0.4mm steel plate. The weight is heavier but the enamel surface
has higher hardness. Even sharp blade can’t damage the surface. However, the Cost is highest.
Pen tray
The felt pen is mainly by felt head, pen body and internal magnet. The magnet can realize the function of the pen color to change.
The pen body adopts streamlined design, provide a comfortable touch feeling, reduce discomfort written long time.
The head of pen used the unique design, conducive to the felt head replacement, environmental protection and energy saving.

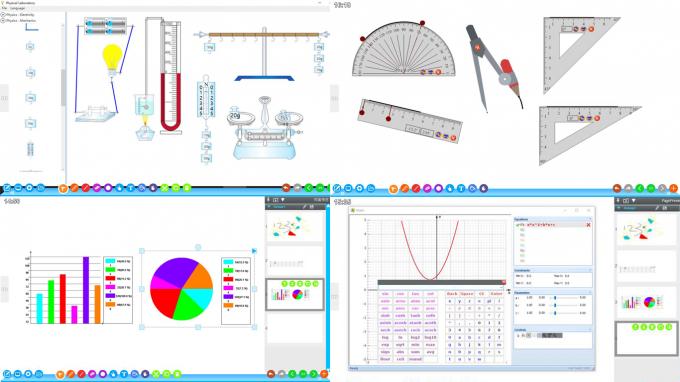

Interactive software
The smart board software
Intelligent gesture-recognition- start software by palm, turn page by hand-waving, moving & writing on page by fingers,
fist work as eraser, zoom in or out the pictures;
Rainbow writing-10 different colors write at the same time, like the rainbow in the sky.
Multi-save way- PDF, WORD, Power pointer and different types of pictures.
Remote control-Connect with other whiteboards, computer, ipad and mobile phone.
10 users work solution-With 10 touch technology, support max 10 users to work together.
