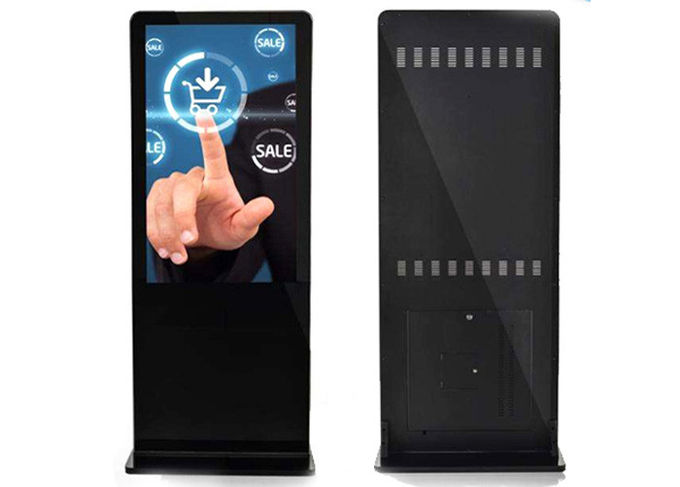

43" Floor Standing Lcd Advertising Player , Lcd Digital Signage
1) Chinese/English OSD menu, easy to operate
2) Aluminium alloy frame, ultra-thin design, easy to use, fashionable appearance
3) Adopt the latest 3D digital decoding and image noise reduction technology
4) Automatic elimination of ghosting function, protecting long-term use of LCD screen
5) A variety of digital images to correct circuit, minimize image distortion
6) 16.7M color depth, image is more natural and smooth
7) 6ms fast response time, no shadow or tail in picture
8) Built-in power supply, low consumption, longer life time
9) Equipped with sensitive infrared receiver, can adjust the parameters of the display via remote control
10) Full metal frame structure design, strong anti-electromagnetic disturbance, no radiation
Features of TACTEASY Digital Signage
♦ Based on Android 4.4 system(up to 5.1), all the android application apk, software automatic restoration supported.
♦ Real time management and controlling, browser, breakpoint upload download, multi-mode upload supported.
♦ Updating programs (video, pictures. texts,PPT etc.) through the internet supported.
♦ Auto power on/off, electronic clock & date supported.
♦ Split Screen and fixed templated display setting supported.
♦ Setting IP address, working time and working day supported.
♦ 1080P full HD programs display supported.
♦ WLAN & LAN long-distance setting play/sleep/reboot etc..function supported.
♦ Display contents cryptographic protection supported (optional).
♦ Cable network, wifi, 3G, 4G touch screen, motion senor and inner camera setting supported (optional).
♦ Available in a wide range of sizes: 43”,49",55” and 65”, each display has built-in speakers and comes with a remote control.
Specification of Digital Signage
| Specification for Panel |
Specification for Android main board |
| Screen size |
43" TFT LCD Panel |
CPU |
1.5GHz, Dual Core
1.8GHZ, Qual Core
|
| Touch screen |
Optional |
Infrared remote control |
support |
| Max. Resolution |
1920x1080 |
RAM |
1G,2G is optional |
| Viewing angle |
178°/178° |
Internal Memory |
NAND FLASH 4G |
| Color |
16.7M |
External Memory |
SATA/USB/SD card/CF card |
| Brightness |
450cd/m2 |
Resolution |
1080P (1920x1080) |
| Contrast ratio |
4000:1 |
Operating system |
Android 4.4(up to 5.1) |
| Response time |
5ms |
Play mode |
Circulation, timing, inter-cutting etc. |
| Viewable area |
1073(H)x604(V)mm |
Network |
Ethernet, wifi, 3G,4G is optional |
| Dot Pitch |
0.73(H)x0.73(V)mm |
Video format |
Compatible for SD card and CF card |
| Working power |
AC100-240V 50/60Hz |
SD card |
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Speaker power consumption |
10W |
Picture format |
BMP, JPEG, PNG, GIF |
| Max power consumption |
100W |
Networking protocol |
TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP |
| Standby power consumption |
0.3W |
USB2.0 port |
2x USB HOST external mouse and
keyboard |
| Working humidity |
10%-90% (Without dew) |
Ethernet |
1x RJ45, 10M/100M optional |
| Working temperature |
0鈩-40鈩 |
LVDS / output |
1 |
| Storage temperature |
-20鈩-60鈩 |
Support HDMI output |
1 |
| Remarks |
AV output |
CVBS AV output (L/R)
built in double power amplifier |
| Installation type |
Floor standing |
VGA output |
1 |
| Design |
iPhone appearance |
Real time clock |
Yes |
| Comes with accessory |
User Manual x1 |
Timing switch |
Yes |
| Remote control x1 |
System upgrade |
USB upgrade and network upgrade supported |
| CD x1 |
Safety |
Safety lock design |
| Floor standing installation kits |
Working temperature |
0鈩-40鈩 |
