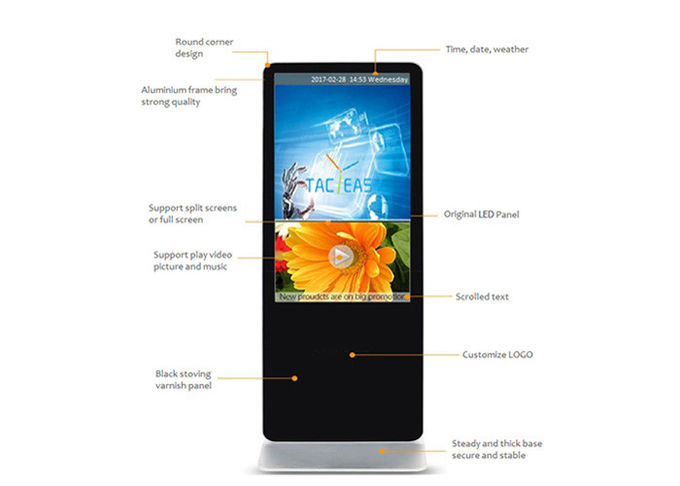

Floor Stand Android Wifi Lcd Advertising Display Video Player 55 Inch
Working Principle of Digital Signage
Digital content can be created easily via digital signage which allow advertisers to combine audio, video, image and interactivity by themselves. Digital contents displayed on the signage is presented in one of the following formats:
♦ Text - Scrolling text. Either scrolling text, or text dynamically updated via external newsfeed source.
♦ Images - Scrolling images, usually in the format of digital advertisement posters.
♦ Video - Usually in the format of commercial TV advertisements.
♦ Interactive interfaces - Combining with Touch Screen and which allows two-way communications with the users. It helps to engage users and also helps advertisers to gain insight in customer behaviors.
Display mode:
Logo, video ,flash animation,images, text mix broadcasting area are available.
Support loop play.
Support rich display resolution:1366x768,1440x900,1600x900,1680x1050,1920x1080.
Support Chinese ,English and other languages.
Split-screen display:
Support switch between both horizontal & vertical display mode.
Support switch between full screen and split diplay mode.
Smooth scrolling marquee play,without pause.
Timing management:
Support turn on,turn off on time or manually operating mode.
Support set up 7 days a week or set up according to the daily management
File Saurce:
Support CF card ,SD card ,U disk & other storing media store file , update the software by
CF card ,SD card and U disk
Specification of Digital Signage
| Specification for Panel |
Specification for Android main board |
| Screen size |
43" TFT LCD Panel |
CPU |
1.5GHz, Dual Core
1.8GHZ, Qual Core
|
| Touch screen |
Optional |
Infrared remote control |
support |
| Max. Resolution |
1920x1080 |
RAM |
1G,2G is optional |
| Viewing angle |
178°/178° |
Internal Memory |
NAND FLASH 4G |
| Color |
16.7M |
External Memory |
SATA/USB/SD card/CF card |
| Brightness |
450cd/m2 |
Resolution |
1080P (1920x1080) |
| Contrast ratio |
4000:1 |
Operating system |
Android 4.4(up to 5.1) |
| Response time |
5ms |
Play mode |
Circulation, timing, inter-cutting etc. |
| Viewable area |
1073(H)x604(V)mm |
Network |
Ethernet, wifi, 3G,4G is optional |
| Dot Pitch |
0.73(H)x0.73(V)mm |
Video format |
Compatible for SD card and CF card |
| Working power |
AC100-240V 50/60Hz |
SD card |
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Speaker power consumption |
10W |
Picture format |
BMP, JPEG, PNG, GIF |
| Max power consumption |
100W |
Networking protocol |
TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP |
| Standby power consumption |
0.3W |
USB2.0 port |
2x USB HOST external mouse and
keyboard |
| Working humidity |
10%-90% (Without dew) |
Ethernet |
1x RJ45, 10M/100M optional |
| Working temperature |
0鈩-40鈩 |
LVDS / output |
1 |
| Storage temperature |
-20鈩-60鈩 |
Support HDMI output |
1 |
| Remarks |
AV output |
CVBS AV output (L/R)
built in double power amplifier |
| Installation type |
Floor standing |
VGA output |
1 |
| Design |
iPhone appearance |
Real time clock |
Yes |
| Comes with accessory |
User Manual x1 |
Timing switch |
Yes |
| Remote control x1 |
System upgrade |
USB upgrade and network upgrade supported |
| CD x1 |
Safety |
Safety lock design |
| Floor standing installation kits |
Working temperature |
0鈩-40鈩 |
