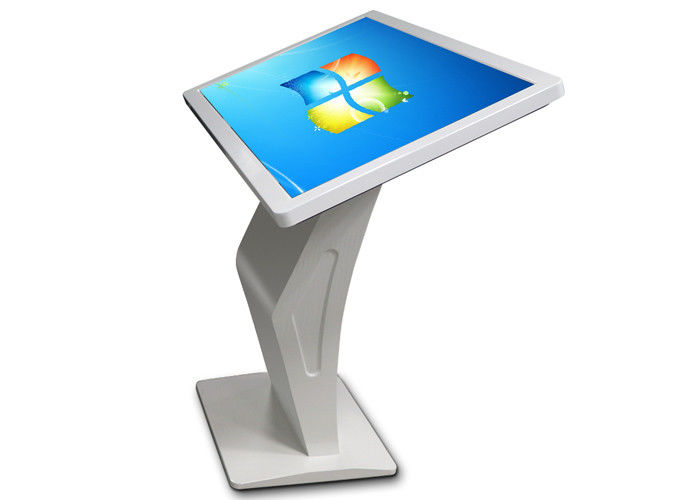

Touch Screen Self Service Kiosk , Digital Touch Screen Kiosk 1920 * 1080 Resolution

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Hard paper carton, wooden case
Payment Terms:	T/T, Western Union
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Digital Signage Kiosk Automatic Ordering Self Service Kiosk With Touch Screen

Features of Touchscreen Kiosk

♦ Infrared Multi-point Touch

♦ Full HD Display 1080P

♦ Energy Efficient

♦ Complies With HID Equipment Standard

♦ Touchscreen Detection Software Supports Full Screen Detection

♦ Location and Adjustment

♦ Ambient Light Sensor

♦ Anti-light Interference Function

♦ Intel Core i3, i5, i7 Processor; Based on intel Standard OPS platform

Specifications of TouchScreen Kiosk
Product Specifications
Model	TK-32	TK-43	TK-49	TK-55
Panel Size	32”	43”	49”	55”
Resolution	1920 x 1080 1080P	1920 x 1080 1080P	1920 x 1080 1080P	1920 x 1080 1080P
Visual angle L/R	178°/178°	178°/178°	178°/178°	178°/178°
Brightness	350 cd/m2	350 cd/m²	350 cd/m²	350 cd/m²
Display Area	697.7(H)x392(V)mm	930.24(H)x523(V)mm	1073.78(H)x604(V)mm	1209(H)x680(V)mm
Contrast ratio	4000:1	4000:1	4000:1	4000:1
Color	16.7M	16.7M	16.7M	16.7M
Operating Voltage	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz
Power Consumption	170W	175W	175W	270W
Operation System
Operating System	Windows 7/8/10		Android 4.4 (up to 5.1)
Main board	MSI B751A-E33		Rockchip RK3288
RAM	4GB		2GB
Memory/ROM	WD500GB, 5400 Revolution		8GB eMMC, TF/USB extended memory
CPU	Intel core2 i3 /i5 /i7		Quad Core 1.8GHz
Graphic	Intel HD Graphics 2500		Quad Core ARM Mail-764
Signal interface	HDMIx1 VGAx1 DVIx1 USBx4 AVx3		HDMIx1 VGAx1 USBx2
Internet interface	RJ45x1 Ethernetx1,10/100M, Wifi ×1,WIFI(802.11bgn) 3G/4G Slot
IR Touch Screen
Interpolation resolution	32767 x 32767
Response Time	<20ms
Physical Hardness	Moh’s Scale 7
Smallest touch object	5mm
Touch Accuracy	Touch area over 90%±2mm
Touch screen	Multi-touch (6-32) touch Point Optional area over 90%±2mm
Input mode	Finger, Touch pen or light proof objects
