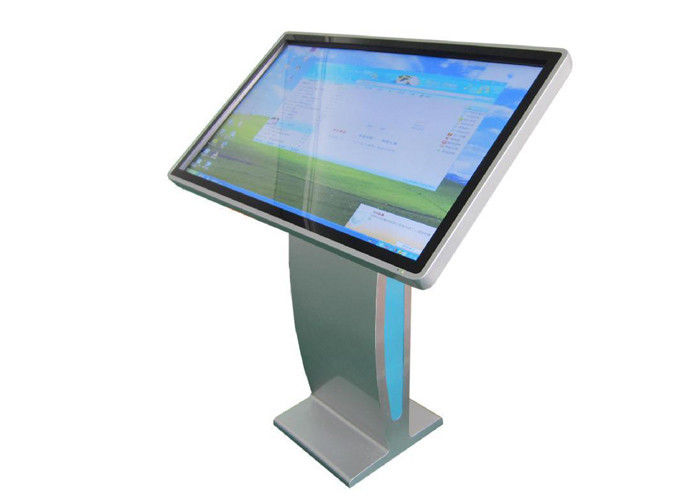

Full HD Touch Screen Advertising Player Floor Stand Digital Signage Kiosk
Play Function
1. Support USB file update automatically
2. IR remote control
3. Support CF/SD/MMC card & USB storage
2. Support clock & timing play function
3. Support OSD menu & file rotation function
4. Support rolling title
5. Support 18 OSD languages: Chinese, English, French, Spanish, Russia, Japanese, Korea, etc.
6. Support HD file playback: 720P, 1080I, 1080P
(Optional: Network Function)
LAN/WAN/Wi-Fi Support
1. B/S Structure: IE Browser/Server structure, all operation based on cloud computing, Powerful Server software functions;
2. Web Page Operation: No need software installation, just Web browser to operate directly and easily;
3. Template Layout: Offer multi zone and auto information zone layout, including zones for picture, video, music, word title, weather forecast, news, etc;
4. Programming: Support programming, program play mode carousel/ Inter cut/ order program;
5. Terminal Management: grouping management, management per terminal and group;
6. Configuration Management: management per terminal and group for Network connection, time of power on/off, volume, time to upgrade;
7. System status: record abnormal alert, offer system monitor information;
8. Playback Statistics: Check the times and detailed information of file playback in the certain period on certain group or terminal;
9. Statistics of Flow: Statistics to the flow in a certain period;
10. Security Management: available to setup multi level management authority to a certain account;
11. Data Backup: Import & export historical data, configure information, program information, group information.
Specifications:
| Panel Size |
42"(16:9) TFT LCD |
| Resolution |
1920 x1080 |
| Contrast ratio |
'4000:1 |
| Active area |
1428*803mm |
| Brightness |
500cd/m2 |
| Viewing angle |
V:178° , H:178° |
| Build in speakers |
stereo sound(10W+10W) |
| Using life |
50 000 hours |
| OS |
Windows XP, Windows 7 (but we don't supply software) |
| Motherboard |
TH-H61 |
| CPU |
I3-3220 |
| Memory |
DDR3-4GB |
| Hard Disk drive |
Sata 500GB |
| Graphics |
GT450,1G |
| WiFi |
Yes, inbuild WiFi(802.11b/g/n) |
| Touch screen |
IR multipoint touch |
| Lan |
10/100M, RJ-45 port for connecting to an Ethernet network |
| OSD |
Chinese and English( Other language are optional) |
| Interface |
6XUSB,1XDVI,1XHDMI, 1XLAN,1XVGA |
| Accessories |
Power supply cable, Remote controller, Key
|
