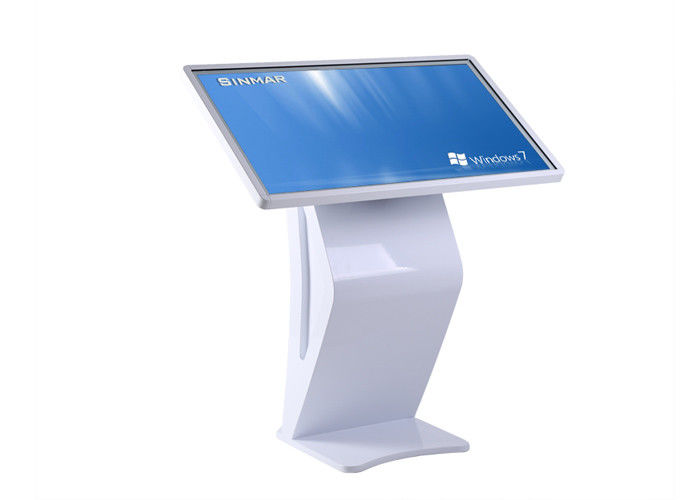

Intelligent Advertising Display Widely Use Digital Signage Kiosk
* Adjustable base.
* Multi-touch
* Professionally designed 30-90 angle, great elevation, adjustable, specific base, allowing users to adjust the most suitable angle. Resistive, capacitive, infrared, optical, acoustic wave touch screen, accurate positioning.
* Touch-free drift, auto- correction, can be precise operation.
* Operated by finger, soft touch pen.
* High-density distribution touch points: over 10,000 touch points in each square inch.
* High definition. Less demanding on the environment, and high sensitivity. Suitable for a variety of environments.
* With over one million hits lifetime high performance resistors, capacitors, infrared touch screen without using the mouse and keyboard, just gently with your finger across the screen or click on the computer all operations can be achieved, so that the computer easier to use. Touch the biggest innovation is its use of a computer is a multi-touch technology has completely changed the way people interact with computers.
| Model No. |
TK-42 |
| Panel size |
42" TFT-LCD, LED backlight |
| Display area(mm)/mode |
930(W)×523(H) 16:9 |
| Maximum resolution |
1920×1080 |
| Display color |
16.7M |
| Pixel Pitch(mm) |
0.4845mm |
| Brightness (nits) |
400nits |
| Contrast |
3500:1 |
| Visual angle |
178°/178° |
| Response time |
8ms |
| Horizontal frequency |
50-70KHZ |
| Vertical frequency |
56-75KHZ |
| Life(hrs) |
50,000(hrs) |
| Touch Panel |
| Specification |
Infrared touch |
| Positioning accuracy |
±2mms |
| Transmittance |
92% |
| Hardness |
7H |
| Click manner |
mult-point |
| Response time |
10ms |
| Output Resolution |
8192×8192 |
| Life time |
more than 600 million times |
| Input and output |
| VGA input |
1 |
| HD |
1 |
| USB |
4 |
| LAN |
1 |
| PC Audio |
1 |
| Speaker |
2×10W(8 ohm) |
| Video |
| Color system |
PAL/NTSC/SECAM |
| Compatible HD input/DVI |
480P,576P,720P,1080I,1080P |
| 3D Comb filter |
Yes |
| Video reduction noise |
Yes |
| OSD display( screen menu display) |
| Menu language |
Chinese/English |
| Computer |
| CPU |
Intel Core i3 |
| Graphics card |
Integrated |
| Audio card |
Integrated AC97 |
| Network card |
Integrated 10/100/1000M adaptive |
| Memory |
2G DDRIII (max 4G) |
| Hard Disk |
64G SSD |
| WIFI |
Included |
| Bluetooth |
Optional |
| Original OS Optional |
Optional with cost |
| Power |
| Power supply |
AC100V~240V,50/60Hz |
| Maximum power consumption |
250W |
| Standby power consumption |
3W |
| Temperature |
| Working temperature |
0°C~50°C |
| Storage temperature |
-10°C~60°C |
| Working humidity |
20%~80% |
| Storage humidity |
5%~95% |
| Appearance |
| Cabinet color/appearance |
White, black, customized |
| Cabinet material |
SPCC/Aluminum/Customized |
| Installation |
Floor-standing
|
