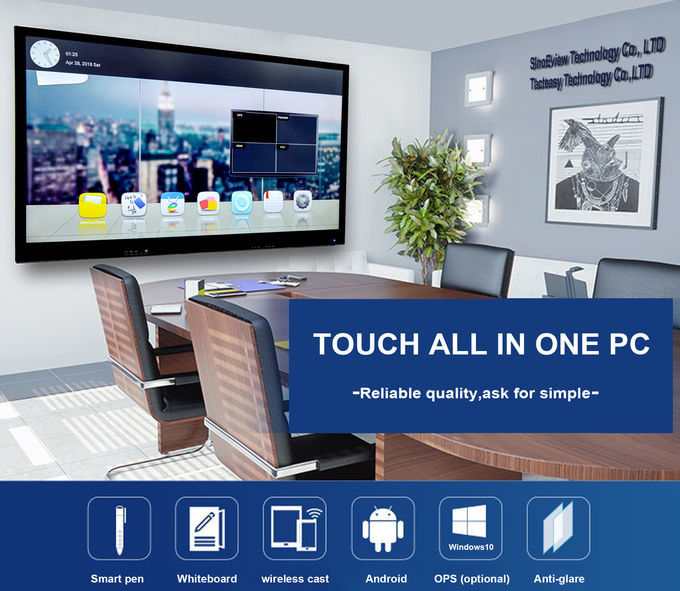

Interactive Screens For Education 55 65 75 86 inch interactive whiteboard touch screen monitor for education
Advantages
1. Ten –touch points at the same time, infrared sensor technology, with finger touch directly for operation;
2. Strong anti-resistance to light, work directly under sunlight;
3. Multi-touch, intelligent gesture-recognition like zoom in or out the pictures;
4. Module design, simple combination, installation and parts exchange after sale actively;
5. Aluminum NANO surface ,write by normal felt pen ,both normal brush and even wet cloth can clear well;
6. The material is exquisite; adopt the aluminum honeycomb as the basal plate, flatter and more reliable. Make sure the longevity can reach 5 years;
7. USB works as direct power supply, update and data transfer;
Accessories
AC Power Cable
Operating Instructions & Quick Start Guide
DVD/RW(optional)
Pens
Wall Mount
Remote-control unit
Specifications
Physical Specifications
| TOUCH SIZE |
65inch |
70ich |
75inch |
86inch |
| ACITVE SIZE(mm) |
1428.5 x 803.5 |
1549.44 x 871.56 |
1649.66X927.93 |
1897 X 1068 |
| OUTLINE DIMENSION(l*h*w) |
1489 x 906 x 103 |
1611 x 975 x 112 |
1736 x 1057 x 121 |
1990 x 1203 x 113 |
| PACKING SIZE(l*h*w) |
1620 x 1020 x 220 |
1811 x 1175 x 235 |
1920 x 1350 x 280 |
2150 x 1420 x 330 |
| MOUNTING THINCKNESS(mm) |
100 |
| WALL MOUNTING HOLE DIMENSIONS(mm) |
400 x 420 |
| STAND |
OPTIONAL |
Panel Specification
| PANEL TYPE |
Original LED |
BRIGHTNESS |
≥350 cd/m2 |
| CONTRACT RATIO |
4000:1 |
VIEWING ANGLE |
178° |
| RESOLUTION |
3840 X 2160 P (4K) |
LIFE |
50000 hours |
Android System Attributes
| ANDROID CPU |
MST 638 A7 4core(828 optional) |
RAM |
1G |
| SYSTEM VERSION |
5.1 |
SPEAKER |
2 x 10W @ 8Ω |
| INPUT PORT |
VGAx1,HDMIx2,USB(2.0)x1, USB(3.0)x1, RJ45x1, SD port x1, Audio x1, RF Inx1, USB type B x1, YPBPR x1, AV in x2 |
OUTPUT PORT |
PCaudiox1,RS232X1, TV earphone x1, SPDIFx1 AVout x1, S-video x1 |
| FRONT PORTS |
PC USB x 2, media USB x1, Touch USBx1, HDMI x1 |
| MEDIA SUPPORT |
MPEG1 /MPEG2 /MPEG4 /RM /RMVB /H264 /MOV /MJPEG /DIVX /VC1 /FLV /MP3 /WMA /M4A /AAC /JPG /BMP /PNG |
| SYSTEM LANGUAGES |
Chinese/ English/ Italian/ Spanish/ Arabic |
Software
Eclass software
LinGo software
