Aviation Type Brushed Aluminum Dual system Interactive Screens For Business
Advantages
1. Multi-functional intelligent and efficient
2. 4K large HD screen
3. Smart whiteboard, smooth writing experience
4. Wireless screen synchronization
5. Remote video conference
6. Multi-domain application
7. Easy installation
Warrantly time
The whole item with 1 year, touch PCB for interactive PC come with advanced replacement warranty as standard for 3 years, which means if there is a problem and we can’t fix it you’ll get a replacement straight away.
Software
The interactive software incorporates drawing tools and shapes for meetings, presentations and teaching but takes this further so that you can draw on surface by fingers, annotate live websites and save your work for reference. The software also includes hand writing to office software using the felt pen or finger.
You also have the ability to create charts, graphs, three dimensional drawings, images and tables, and use the integrated mathematical instruments to explain simple or complex theory to students. Catch the pictures from video.
Accessories
AC Power Cable
Operating Instructions & Quick Start Guide
DVD/RW(optional)
Pens
Wall Mount
Remote-control unit
Specifications
Physical Specifications
| TOUCH SIZE |
65inch |
70ich |
75inch |
86inch |
| ACITVE SIZE(mm) |
1428.5 x 803.5 |
1549.44 x 871.56 |
1649.66X927.93 |
1897 X 1068 |
| OUTLINE DIMENSION(l*h*w) |
1489 x 906 x 103 |
1611 x 975 x 112 |
1736 x 1057 x 121 |
1990 x 1203 x 113 |
| PACKING SIZE(l*h*w) |
1620 x 1020 x 220 |
1811 x 1175 x 235 |
1920 x 1350 x 280 |
2150 x 1420 x 330 |
| MOUNTING THINCKNESS(mm) |
100 |
| WALL MOUNTING HOLE DIMENSIONS(mm) |
400 x 420 |
| STAND |
OPTIONAL |
Panel Specification
| PANEL TYPE |
Original LED |
BRIGHTNESS |
≥350 cd/m2 |
| CONTRACT RATIO |
4000:1 |
VIEWING ANGLE |
178° |
| RESOLUTION |
3840 X 2160 P (4K) |
LIFE |
50000 hours |
Android System Attributes
| ANDROID CPU |
MST 638 A7 4core(828 optional) |
RAM |
1G |
| SYSTEM VERSION |
5.1 |
SPEAKER |
2 x 10W @ 8Ω |
| INPUT PORT |
VGAx1,HDMIx2,USB(2.0)x1, USB(3.0)x1, RJ45x1, SD port x1, Audio x1, RF Inx1, USB type B x1, YPBPR x1, AV in x2 |
OUTPUT PORT |
PCaudiox1,RS232X1, TV earphone x1, SPDIFx1 AVout x1, S-video x1 |
| FRONT PORTS |
PC USB x 2, media USB x1, Touch USBx1, HDMI x1 |
| MEDIA SUPPORT |
MPEG1 /MPEG2 /MPEG4 /RM /RMVB /H264 /MOV /MJPEG /DIVX /VC1 /FLV /MP3 /WMA /M4A /AAC /JPG /BMP /PNG |
| SYSTEM LANGUAGES |
Chinese/ English/ Italian/ Spanish/ Arabic |

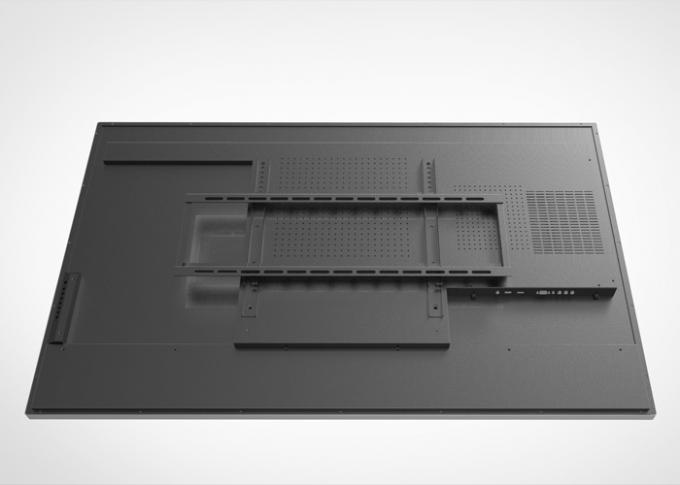

Touch Screen Back
