3.5mm Audio-in Video Compatibility Ultra short throw laser Projector with Remote Control
PRDUCT FEATURES:
1. Hybrid filter& Powerful Cooling System
Optimized cooling system: multiple cooling outlets and inlets design enables effective and powerful dispersion of heat and even in high altitude.
2. Long Lamp Life
Laser light projector has 20000 hours lamp life, compared with ordinary projector bulb, working life will be increased 4 times.
3. Network Control
By wired connection RJ45, the user can control or monitor all projectors in distance by on/off, configuration, viewing lamp time and operating status by entering corresponding IP through internet browser.
4. Security
An improved security bar enables projectors to be attached to a convenient place by a cable or a chain.
5. Fast Turn On & Off
The maximum brightness projection time only needs 3 seconds after turn on, no need warm-up time, ordinary projector bulb usually take 30 seconds long time.
5.1) Only needs 3 seconds to highest brightness after turning on;
5.2) No need to wait the machine to warm-up;
5.3) Only need 13 seconds to display projection image.
short throw projector for SMART BOARD
Short throw projector for education, DLP, 3D ready
OEM order is acceptable
| Digital Projector |
| Display Technology |
DLP 0.55 inch |
| Lens Position |
0.6ST NEW ST lens |
| CHIP Specification |
0.55" XGA, 1024x768 |
| Resolution |
XGA, 1024x768 |
| Brightness |
3000 Lumens |
| Contrast |
3000:1 |
| Transmittance(ANSI standard) |
0.6 |
| Lens Bias |
130% |
| Projection Lens |
F=2.6,f=6.9mm |
| Market Uniformity |
85% |
| Throw Ratio |
82"@1m |
| Throw Distance |
0.5~4m(64"~300") |
| Aspect Ratio |
4:3 (Standard)/16:9 (Compatible) |
| Keystone |
+/- 40° (Vertical) |
| Noise Level |
38dB (normal) / 36dB (eco) |
| Special function |
Active Shutter 3D |

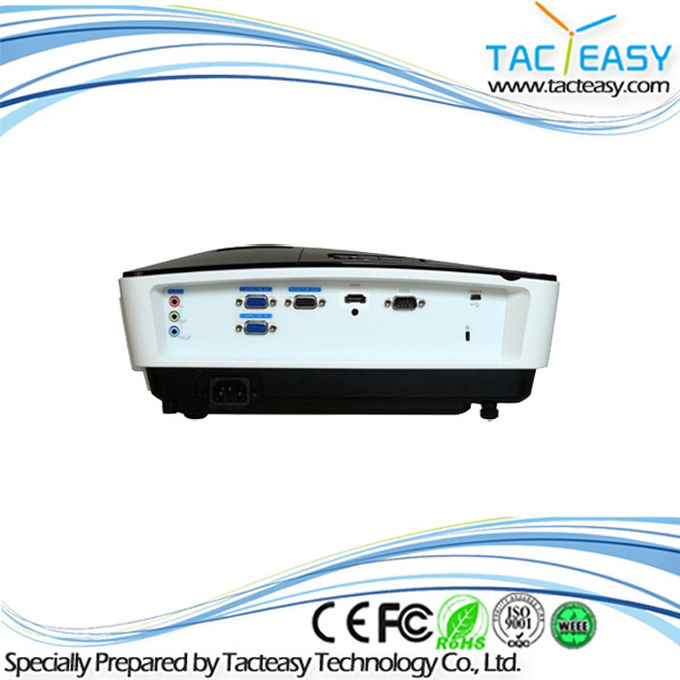

| PORT |
|
| VGA input(Dsub-15pin) |
VGAx 2 |
| VGA output(Dsub-15pin) |
VGAx1 |
| Audio input(mini jack) |
Audio inx 1 |
| Audio output(mini jack) |
Audio outx1 |
| HDMI Port |
HDMI x1 |
| B type USB |
USBx1 |
| VIDEO input |
RCAx 1 |
| S-VIDEO input |
S-videox 1 |
| RS232C (DB-9pin male) |
RS232x 1 |
| PC Compatibility |
VGA SVGA XGA SXGA WXGA UXGA Mac |
| Video Compatibility |
PAL,SECAM,NTSC 4.43,PAL-M, PAL-N, 480i,480p,576i,576p,720p,1035i,and 1080i |
| Distance control |
Yes |
| Lamp Power |
240W |
| Lamp Life |
(Normal)4000H/(Eco)6000H |
| H~Synch Range |
15~100 KHz |
| V~Synch Range |
48~85Hz |
| Standby Power |
<0.5W |
| Power Consumption |
285W |
| Power Supply |
100V – 240V @ 50-60 HZ |
| Operating Temp. |
5鈩儈35鈩 |
| Store Temp. |
-10鈩儈~60鈩 |
| OSD language |
19 languages:Chinese,English,French,Spanish,Portuguese,German,Italian,Janpanese, Korean,Russian,Finnish,Dutch,Thai,Vietnam,Turkish,Africaans,Indonesian,Farsi,Arabian |
| Speaker |
2W x 1 |
| Size (WxHxD) |
284 x 78.2 x 234.1 mm |
| Net Weight |
2.6KG |
| Accessories |
Manual (CD), Remote Controller, Power Cable, VGA Cable. |
