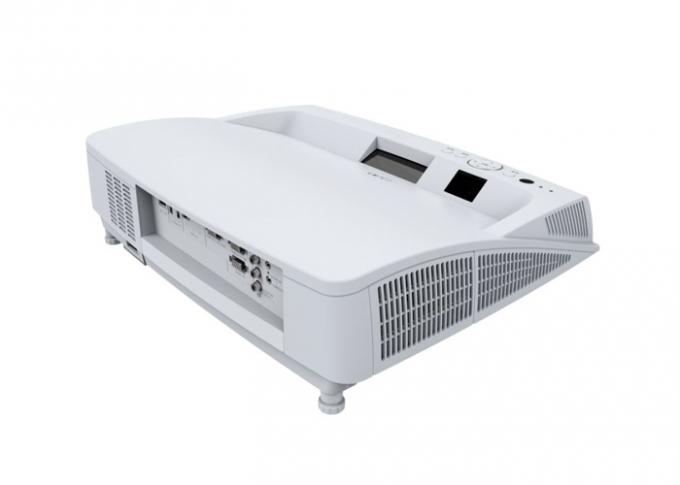

5500LM High Definition Ultra 16 : 9 Ultra Short Throw Laser Projector for Business
PRDUCT FEATURES:
1. Resolution Up to 1080P
1080P standard resolution, compare with traditional education projector, TP-410S has higher resolution completely compatible with the current computer and laptop, bring more high quality visual effects.
2. Laser Light Source, Better Color
Compare with ordinary light source projector, laser projector has a wider range of colors, images show more real.
3. Fast Turn On & Off
The maximum brightness projection time only needs 3 seconds after turn on, no need warm-up time, ordinary projector bulb usually take 30 seconds long time.
3.1) Only needs 3 seconds to highest brightness after turning on;
3.2) No need to wait the machine to warm-up;
3.3) Only need 13 seconds to display projection image.
4. Security
An improved security bar enables projectors to be attached to a convenient place by a cable or a chain.
5. Multimedia Play & Customized Boot Screens
Support reading Flash disk, mobile HDD and other multimedia equipment through the USB port, be compatible for video, audio and office documents and played directly.
short throw projector for SMART BOARD
Short throw projector for education, DLP, 3D ready
OEM order is acceptable
| Digital Projector |
| Display Technology |
DLP 0.55 inch |
| Lens Position |
0.6ST NEW ST lens |
| CHIP Specification |
0.55" XGA, 1024x768 |
| Resolution |
XGA, 1024x768 |
| Brightness |
3000 Lumens |
| Contrast |
3000:1 |
| Transmittance(ANSI standard) |
0.6 |
| Lens Bias |
130% |
| Projection Lens |
F=2.6,f=6.9mm |
| Market Uniformity |
85% |
| Throw Ratio |
82"@1m |
| Throw Distance |
0.5~4m(64"~300") |
| Aspect Ratio |
4:3 (Standard)/16:9 (Compatible) |
| Keystone |
+/- 40° (Vertical) |
| Noise Level |
38dB (normal) / 36dB (eco) |
| Special function |
Active Shutter 3D |
| PORT |
|
| VGA input(Dsub-15pin) |
VGAx 2 |
| VGA output(Dsub-15pin) |
VGAx1 |
| Audio input(mini jack) |
Audio inx 1 |
| Audio output(mini jack) |
Audio outx1 |
| HDMI Port |
HDMI x1 |
| B type USB |
USBx1 |
| VIDEO input |
RCAx 1 |
| S-VIDEO input |
S-videox 1 |
| RS232C (DB-9pin male) |
RS232x 1 |
| PC Compatibility |
VGA SVGA XGA SXGA WXGA UXGA Mac |
| Video Compatibility |
PAL,SECAM,NTSC 4.43,PAL-M, PAL-N, 480i,480p,576i,576p,720p,1035i,and 1080i |
| Distance control |
Yes |
| Lamp Power |
240W |
| Lamp Life |
(Normal)4000H/(Eco)6000H |
| H~Synch Range |
15~100 KHz |
| V~Synch Range |
48~85Hz |
| Standby Power |
<0.5W |
| Power Consumption |
285W |
| Power Supply |
100V – 240V @ 50-60 HZ |
| Operating Temp. |
5℃~35℃ |
| Store Temp. |
-10℃~~60℃ |
| OSD language |
19 languages:Chinese,English,French,Spanish,Portuguese,German,Italian,Janpanese, Korean,Russian,Finnish,Dutch,Thai,Vietnam,Turkish,Africaans,Indonesian,Farsi,Arabian |
| Speaker |
2W x 1 |
| Size (WxHxD) |
284 x 78.2 x 234.1 mm |
| Net Weight |
2.6KG |
| Accessories |
Manual (CD), Remote Controller, Power Cable, VGA Cable. |
